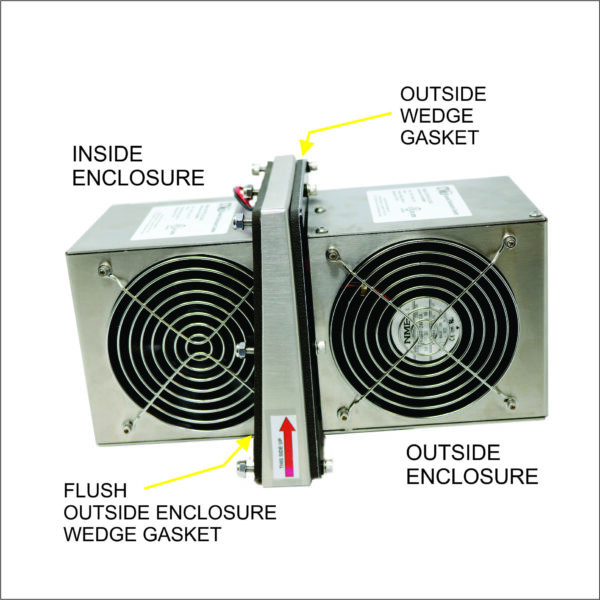

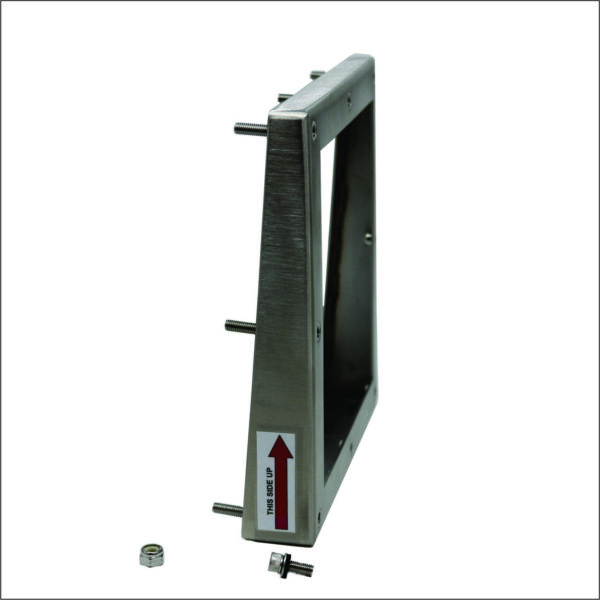

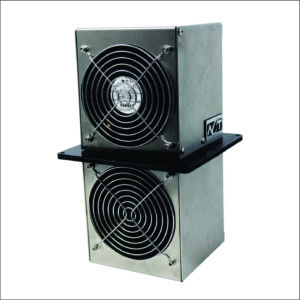

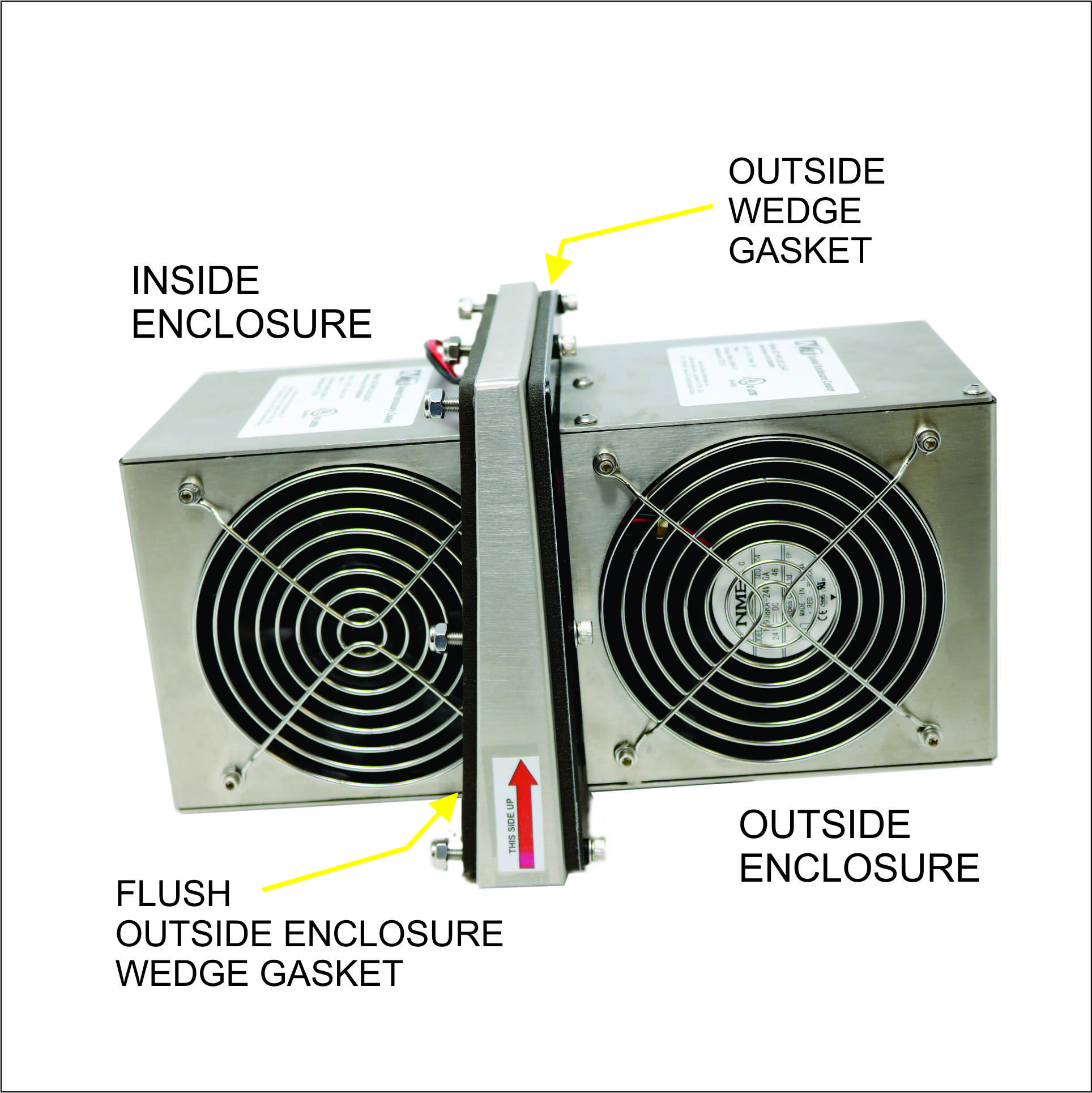

The ACT-HPC-15-SS-WEDGE can be used with all ACT-HPC-15 series heat pipe coolers. The WEDGE first mounts on the control cabinet to provide a slight 5 degree tilt favoring the hotter internal control cabinet temperatures. Since the ACT-HPC-15 is a gravity aided thermosyphon device it need the tilt to optimally function. Adding the WEDGE provides 100% of the ACT-HPC-15 units performance with no penalty for mounting it horizontally. Without the WEDGE the ACT-HPC operates at 85% of it stated performance. There is no need for the WEDGE if the unit is mounted vertically on top of an enclosure.
|Dimensions||10 × 4 × 10 in|
