Sealed Enclosure Cooling from 1000-5000 Watts

High efficiency and compact vapor compression air conditioners designed for sealed enclosure cooling. This compact product line features plug-and-play capability which ensures fast and effective set-up. A flanged design is incorporated for convenient through-wall (or cabinet door) mounting to efficiently cool your power electronics cabinet.

• Harsh Environment Capability (IP55 seal)

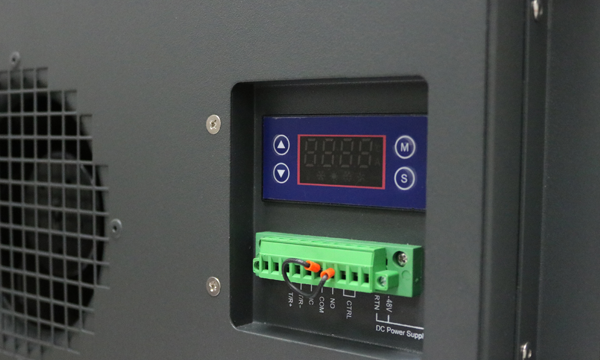

• The closed-loop cooling system protects equipment from harsh environments, with an adjustable cabinet air temperature setpoint from 20°C to 40°C
• BLDC motor technology enables variable speed control for both fans and compressors (Only for DC models)
• 1-Year Warranty (see ACT’s Terms and Conditions for Online Sales) with an expected 10 year lifetime
• Order through our experienced sales staff or Buy Online

ACT VAPOR COMPRESSION AIR CONDITIONER PRODUCTS: VCC Series

-Scroll right to view table-

Part Number	Cooling Capacity @35°C /35°C	Voltage (type)	Weight: bs. (kg)	Height	Width	Depth **

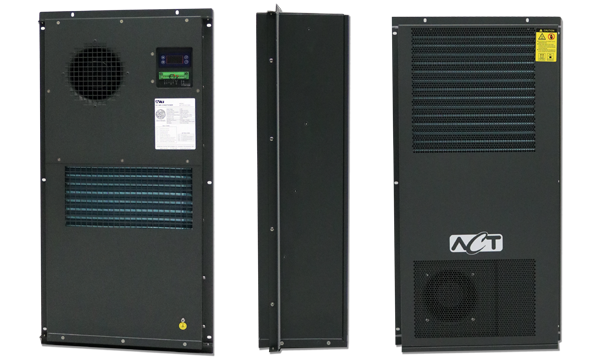

ACT-VCC-1000-DC	1000W	48V*   (DC)	46 (21)	31.22″ 793mm	15.00″ 381mm	6.89″ 175mm

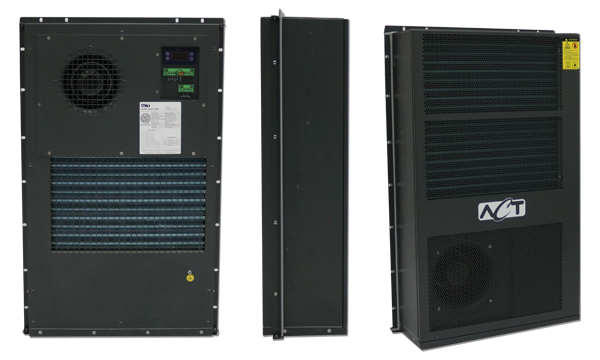

ACT-VCC-2000-AC	2000W	220-240V (AC)	71 (32)	29.33″ 745mm	17.52″ 445mm	7.87″ 200mm

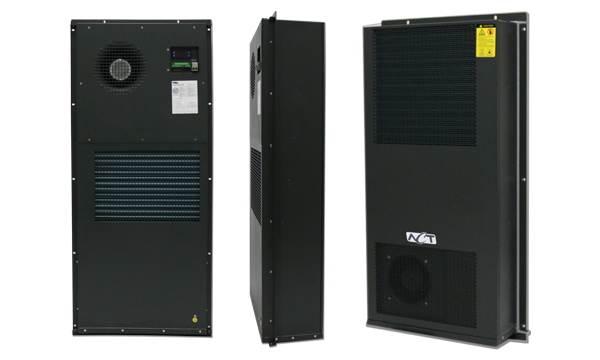

ACT-VCC-3000-DC	3000W	48V*   (DC)	104 (47)	45.30″ 1150mm	19.09″ 485mm	8.86″ 225mm
ACT-VCC-5000-AC	5000W	220-240V (AC)	154 (70)	51.18″ 1300mm	23.62″ 600mm	11.81″ 300mm

Notes:
*DC units are wired for Negative 48 Volt connection.
** Insertion Depth: all models extend 1.77”/45mm into the enclosure

ACT – VAPOR COMPRESSION AIR CONDITIONERS (VCC Series): FEATURES AND OPTIONS

Use our free Enclosure Cooler Selection Tool to determine the proper model for your cabinet.
