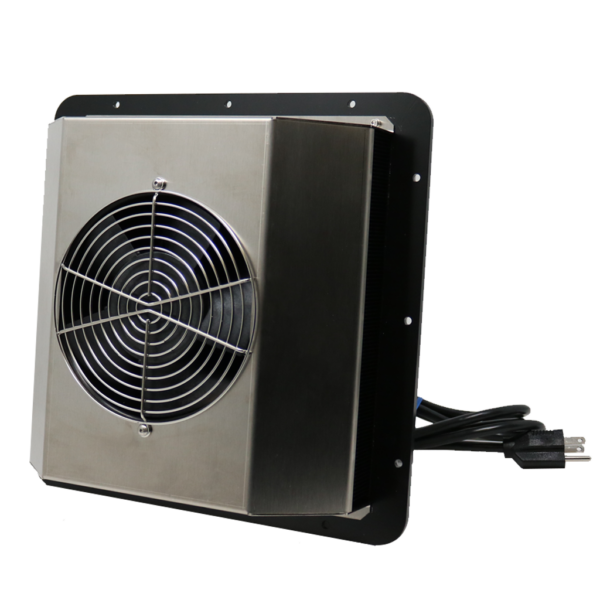

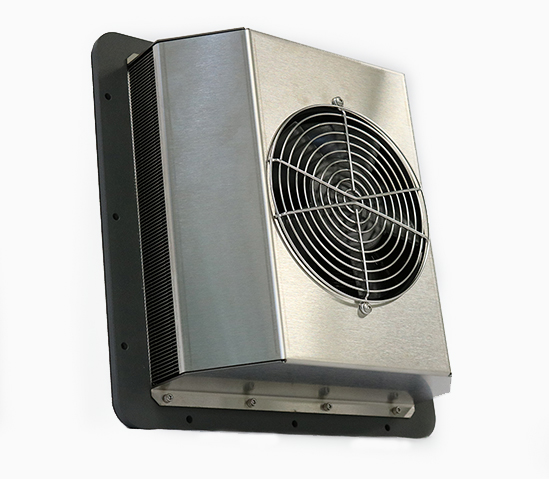

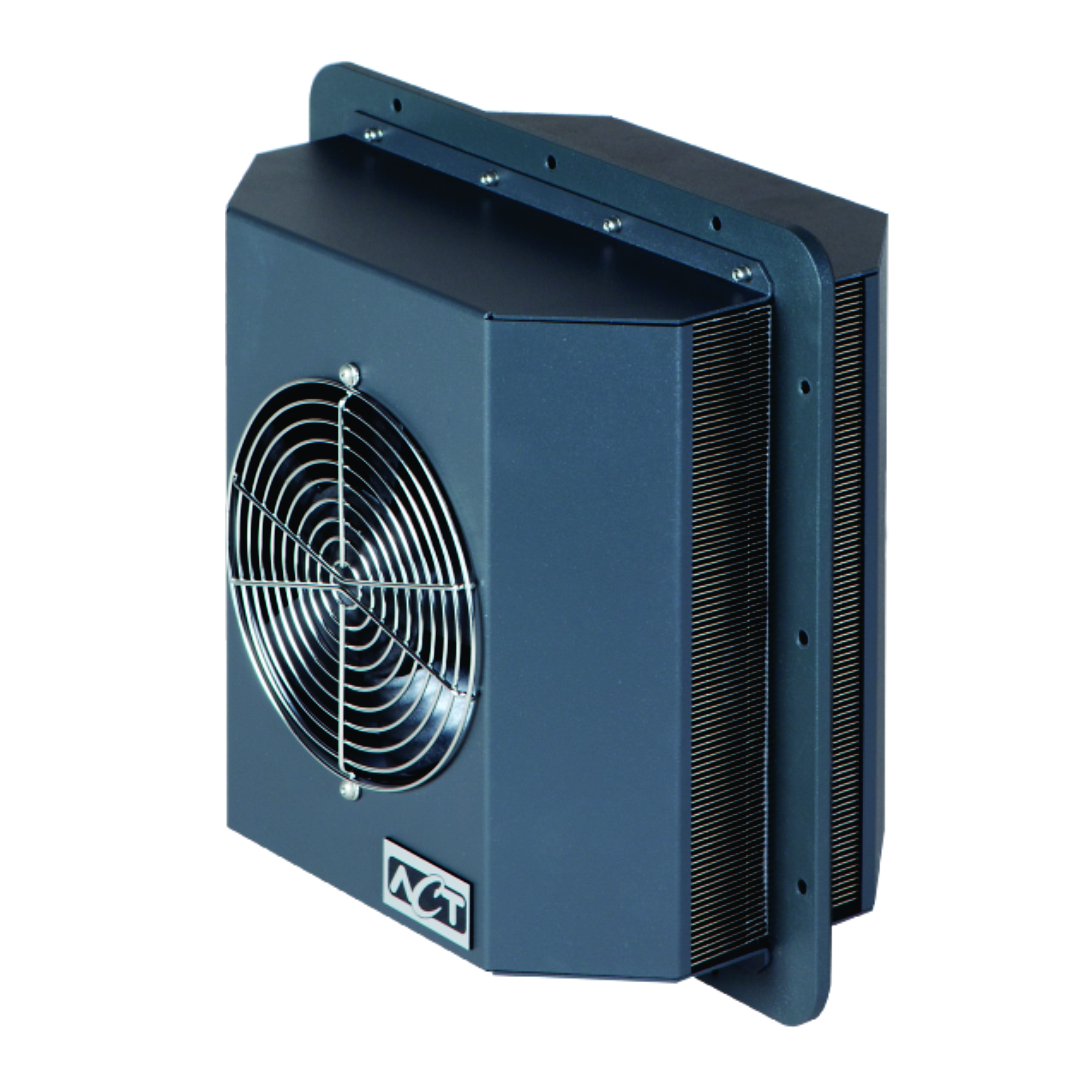

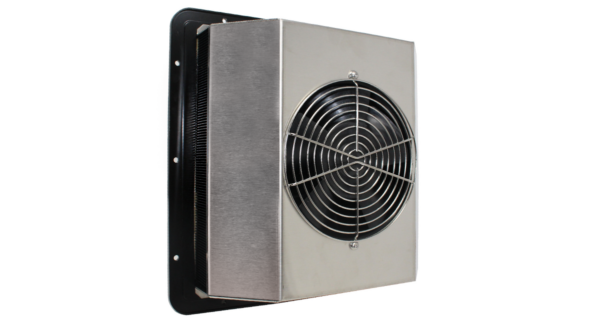

ACT-HSC-22 Heat Sink Cooler (22Watts/°C)


PayPal Acceptance Mark

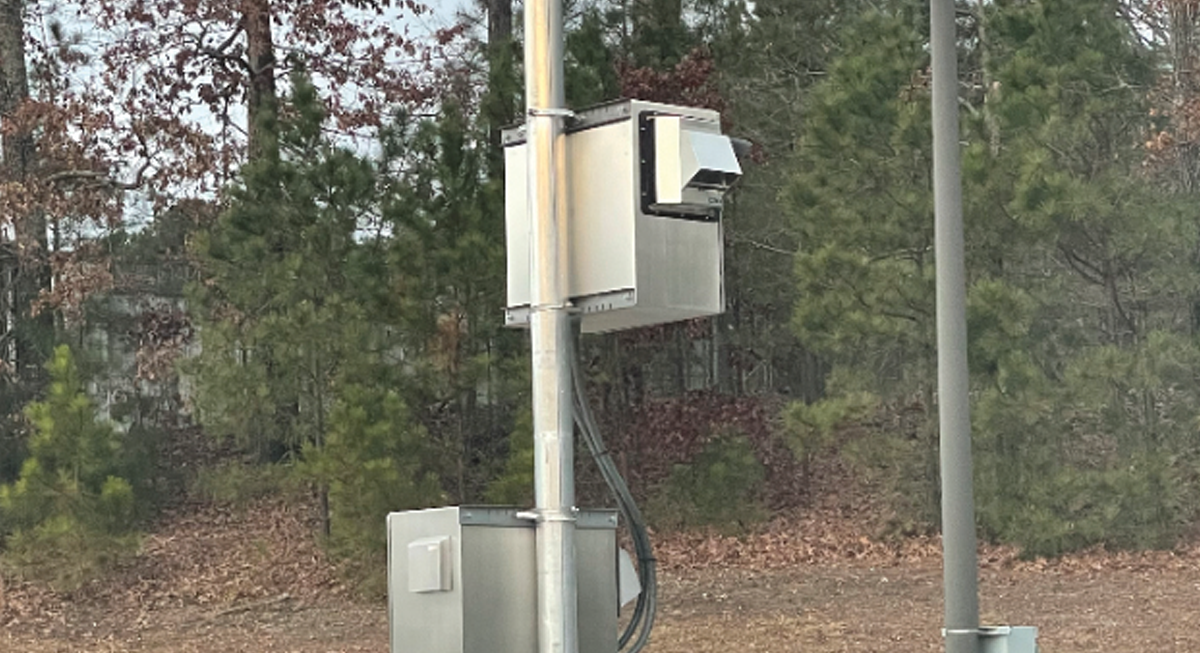

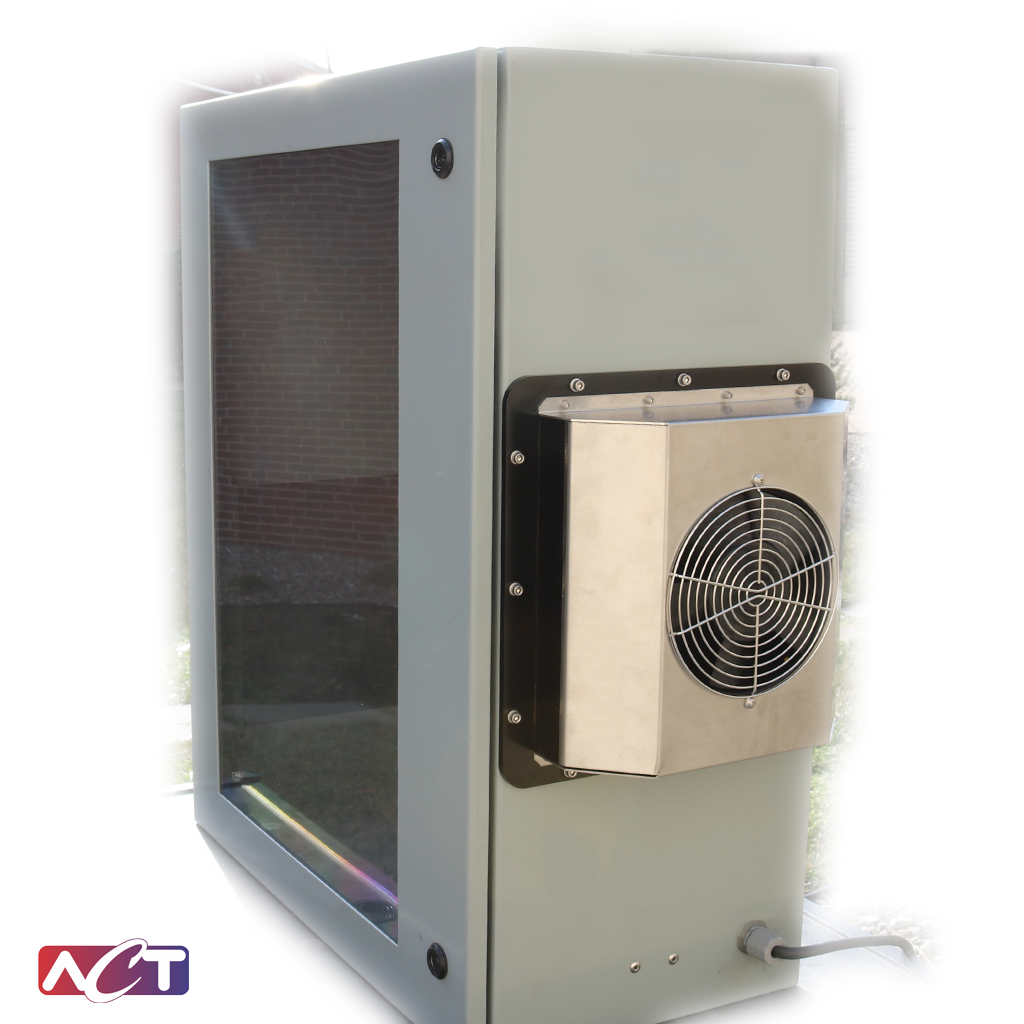

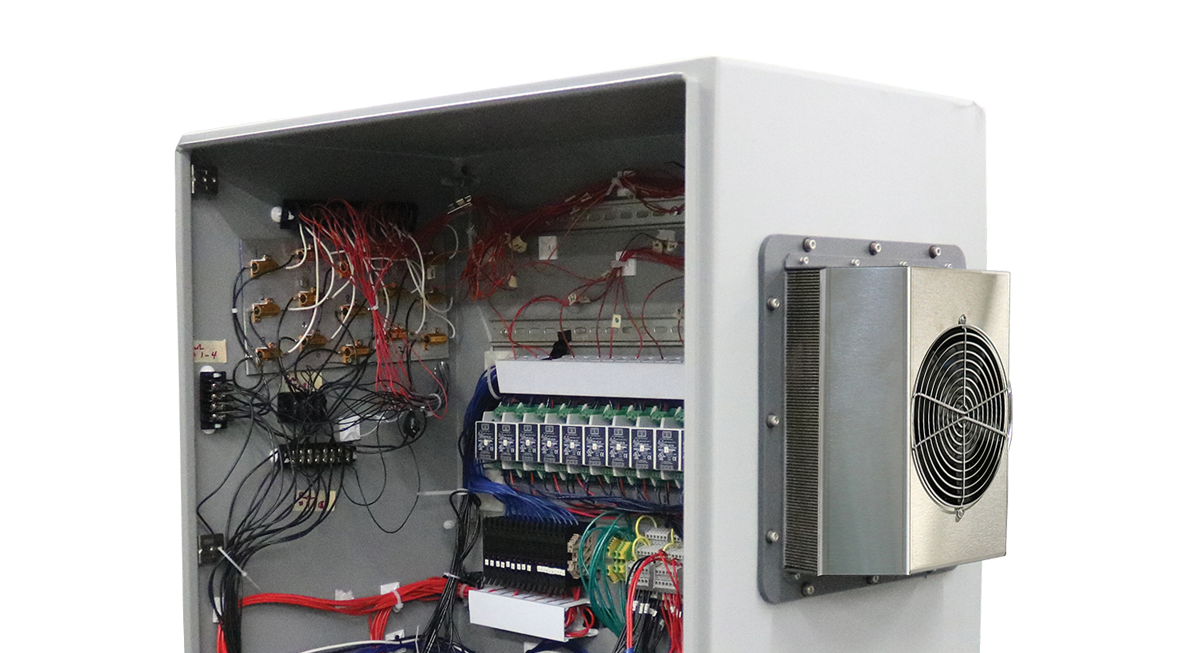

ACT’s HSC (heat sink cooler) series of sealed enclosure cooling units are based on a patent-pending design that utilizes air impingement technology that is thermally efficient and the heat sink components which have been perfected and are being mass-produced and used by the computer industry.  As a result, the ACT-HSC series offers some of the best performance/cost ratios among all sealed industrial enclosure coolers. Choose your desired NEMA rating from the dropdown menu selection. Keep your power electronics or electrical enclosure clean, cool and operational. This unit works in both indoor and outdoor electronics cabinets with fielded units in a variety of industries including dairy automation, food processing, oil and gas, and wastewater applications.

  • Thin profile, i.e., only 3.70″ intrusion into the enclosure
  • High-performance, corrosion-resistant nickel-plated fins
  • Few penetrations by cover fasteners, mounting fasteners, and external fan wires create an optimal seal
  • Dual axial ball bearing fans for years of maintenance-free operation
  • Rugged high-quality construction
  • Easy to install
  • Note: * Depth is total depth; insertion depth= 3.70″ into the cabinet. See the solid model for full dimension details
    ** Shows dimensions for DC model in NEMA 3R, 4, 4X versions; check the solid model for other variants
    ***Weight for 4X models will be slightly greater

Related Files

ACT-HSC Installation Manual
ACT Sealed Enclosure Cooler Product Brochure
Rev A ACT-HSC-22 Enclosure Cutout (.dxf)
ACT-HSC-22 AC NEMA 12, 4 4X, 3R and DC NEMA 12 Assembly (.STEP)
ACT-HSC-22 DC NEMA 3R, 4, 4X Assembly (.STEP)

Product Information

Weight 20 lbs
Dimensions 14 × 14 × 12 in
