Heat Sink Cooler (45Watts/°C) – ACT-HSC-45

Description

ACT’s HSC series of coolers are based on a patent-pending design that utilizes the air impingement technology that is thermally efficient and the heat sink components which have been perfected and are being mass-produced and used by the computer industry.

As a result, the HSC series offers some of the best performance/cost ratios among all sealed enclosure coolers.

Choose your desired NEMA rating from the dropdown menu selection, view NEMA rating details. The NEMA rating selection will determine if the unit is stainless steel or powder-coated.

Ideal industry applications: Food Processing, Oil and Gas, Manufacturing, Telecommunications and Rail.

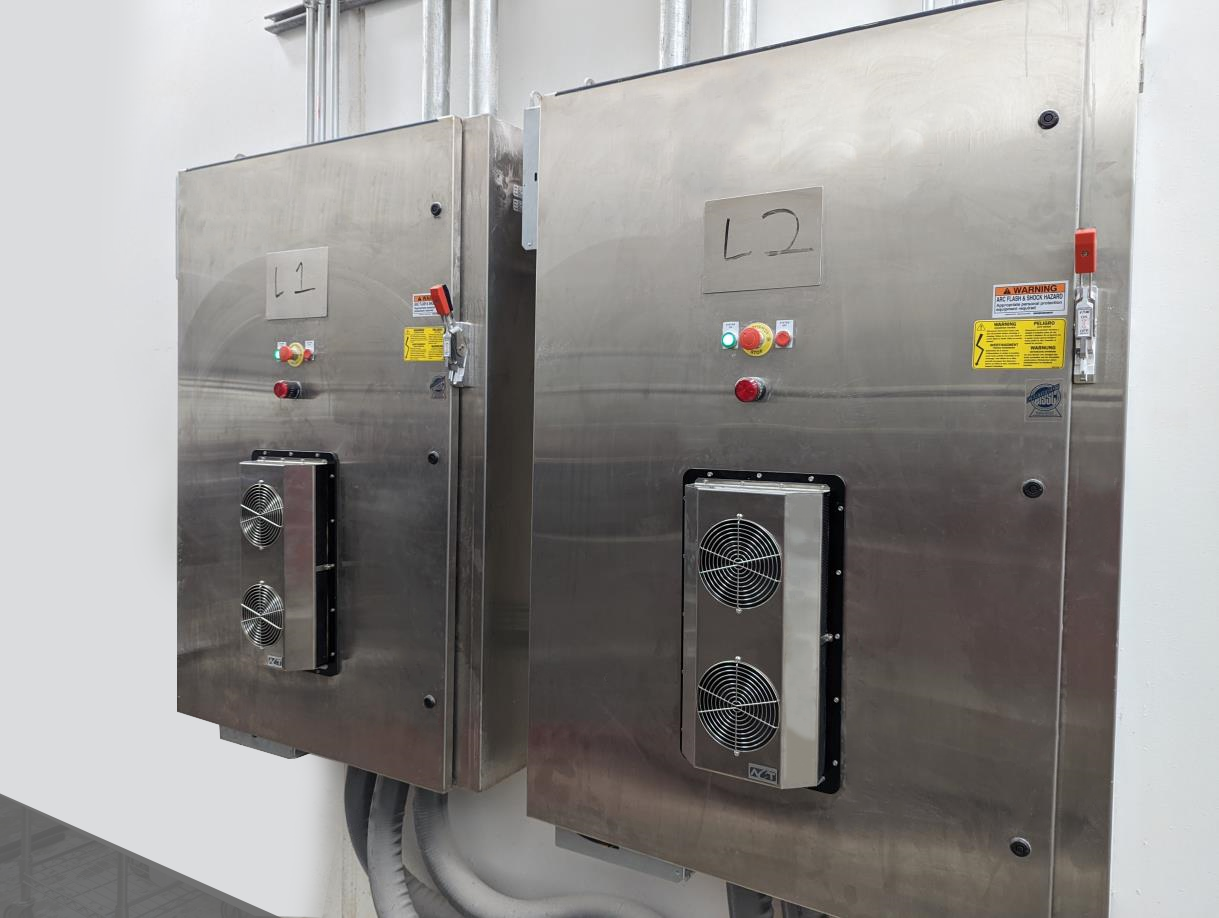

Keep your power electronics cabinet clean, cool and operational with this sealed enclosure cooling unit.

• Thin profile, i.e., only 3.70″ intrusion into the enclosure
• High-performance, corrosion-resistant nickel-plated fins
• Few penetrations by cover fasteners, mounting fasteners, and external fan wires create an optimal seal

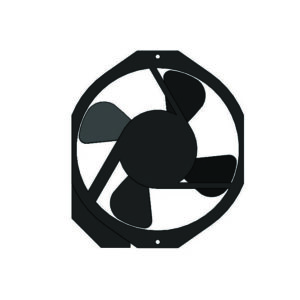

• Dual axial ball bearing fans for years of maintenance-free operation
• Rugged high-quality construction
• Easy to install
• Note: * Depth is total depth; insertion depth= 3.70″ into the cabinet. See the solid model for full dimension details
  ** Shows dimensions for DC model in NEMA 3R, 4, 4X versions; check the solid model for other variants
  ***Weight for 4X models will be slightly greater
